Oxford Instruments,Inc.
X-ray Technology Group

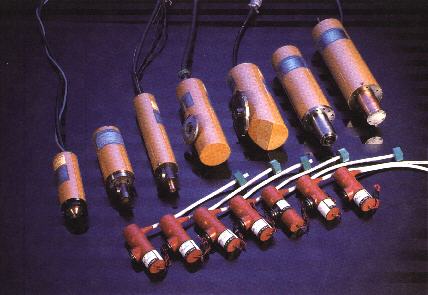

   X-TECH produces both end-window and side-window X-ray tubes
and X-ray heads.

   They are available:

Potted
Completely packaged and shielded
Part of a complete system
   Both end-window and side-window tubes are available with
either the filament or the target grounded.

   For extreamly close optical coupling, a grounded beryllium
window-target is recommended. A thin layer of target material
is deposited directly on the beryllium window. This close
target-sample coupling considerably reduces tube power requirement
and enhances equipment portability.

   The grounded filament, end-window design offers higher
beam power dissipation and is suitable for applications where
higher power is required.

ELECTRICAL AND MATERIAL SPECIFICATIONS

Target (anode) voltage 3kV to 80kV
Target current 10μA to 50mA
Long term stability is 0.2%
Beryllium window thickness ranges from 2mil to 20mil
(0.05mm to 0.5mm)
Target Material: Ti,Cr,Fe,Co,Ni,Cu,Mo,Rh,Pd,Ag,Ta,W,Re,Pt,Au
APPLICATIONS

Elemental analysis by X-ray fluorescence
Thickness gauging by absorption or fluorescence
On-stream process controls
Incoming material specification control
Real time imaging and radiography
Isotope replacement
