[Coordinate] Dialog

CHD Menus   CHD Commands   CHD Dialogs   Diagram Examples

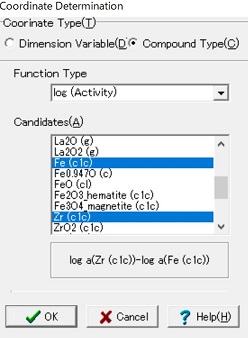

This is to determine one coordinate in the diagram.

To Specify one coordinate,

1) Select of Coordinate Type between Dimension Type and Compound Type. Then, candidates for the selected coordinate type will be updated in the list of candidates.
2a) Dimension Type Coordinate:

Select one of candidates, and then selected coordinate will be displayed in the lower display panel.

2b) Compound Type Coordinate

Select one of candidates, and then a new dialog for determine the coefficient of the select compound will appear. The currently adopted variable will be displayed in the lower display panell.

3) Function Type can be selected for the Dimension type and the Compound Type, respectively.

For the Dimension Type
Normal (Default)
ln (Activity)
Elemental chemical potential

For the Compound Type
Normal
log (Activity) (default)
ln (Activity)
Compound Gibbs Energy

Buttons

OK and Cancel buttons are available.

• Confirm by OK button, or reselect again in the list box.

To Modity

1) To Delete a compound in the Coordinate Variable,
Select the compound and Select 'Remove' radio button in Coefficient Dialog.
2) To Change the coefficient of a compound in the Coordinate Variable,
Select the compound and modify the coefficient in the Coefficient Dialog.
