This is for showing the compound data associated with one vertex. The thermodynamic point corresponding to one vertex consists of several plane data. One is for pressure, the second one is for temperature, and others are for elemental data. This form is prepared for debugging purpose so that it is not necessarily important information in usual cases.

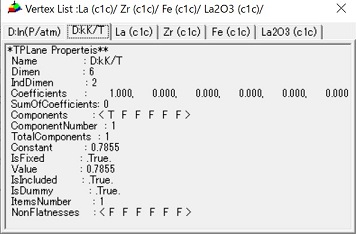

The following Fig. shows the case of temperature.

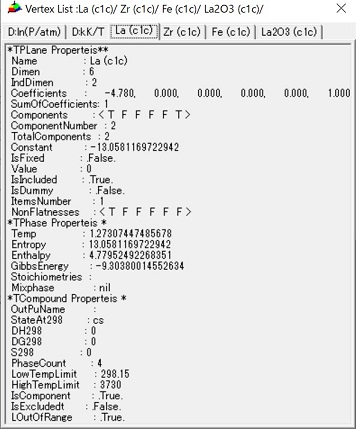

The next one is for the La element.
