Out of Targets Form : editing compounds to be deleted

Related : Main Menu Search Compounds SubMenu: Delete Compounds

Out of Targets Form is to edit the registered compounds so as to be deleted from the retrieved compounds

　When SubMenu: Delete Compounds was selected and some compounds were registered as out of targets (exclude the targets for compounds retrieval), this menu provides a function of editing such compounds. Those registered as out of targets can be cancelled here.

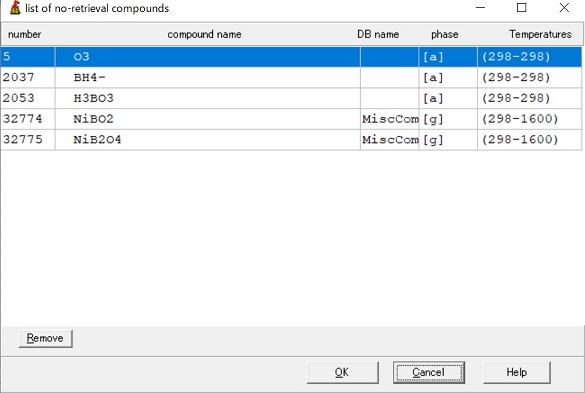

(1) List

　Those compounds which are selected as out of targets from Compound Table will appear here in the list. Compound name, state at 298 K, valid temperature range will be given together with name of the database and registered number. When the target database is the MALT main database, no name and no number is given, whereas for the user database, the file name and number are given.

(2) Remove button,

  1. When "Removal" botton is clicked, the high lighted compound will disappear out fo the list.

(3) Buttons.

  1. When "OK" button is clicked, the procedure of excluding those compounds will be validated and this session will be ended.
  2. When "Cancel" button is clicked, the whole procedure will be cancelled and the original list will be validated again.

When User data file will be compiled, this list of out of Targets will be re-examined. When the registered number and the compound name are not changed, the compound will be saved, whereas difference was recognized, the information of the compound will be discarded. Therefore, the same conditions will be available only when the registration as out-of-Target will be made again after the compilation.
