Phase Selection Form is to select particular states to be used from the several states available for the given compound. By using this function, the several states in one compound can be separated into several phases, for example, one component in the liquid mixture and the individual solid compound. For this purpose, the liquid state is first extracted on the edition of the liquid mixture, and then the rest of state, namely, the solid state will be selected as the individual compound.
When the separation of sates is not needed, the button of "The rest" can be always clicked.

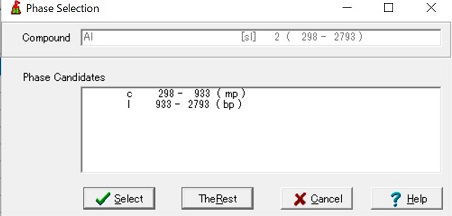

Available high temperature states are listed together with the valid temperature region and the transition name , if any. The target compound is given above.
Select : The presently selected states in the phase selection list can be included in the present phase. When no state was selected, error message will appear. If you want to stop the procedure, you can click the button "Cancel."
The Rest: Regardless the present status of the list, the states without "selected" tag will be included.
Cancel: The selection is stopped. The procedure will go to the next step.
Help: The help for the form will appear.
The selection can be made by using those buttons
clicking the name of the state in the list and finally, click the "Selection" button.
clicking the "The Rest" button. In this case, the states without "selected" tag will be selected.
clicking the "cancel" button to stop the selection and return.
