Run Time Parameter Form

Run Time Parameters Form is for editing the run time parameters for CHD, gem and user's applications which will be run as a child process from the MALT for Windows.

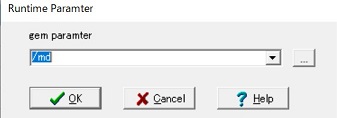

• (1) Combobox for editing (2) Button for Search File (3) Buttons

Parameters can be edited by using the followings:

(1) Combobox for editing

• This combobox will save the input string for respective modes (gem, CHD and user's application).
For gem, "/md" and the file name for the gem project file can be specified as the parameters.
For CHD, only "/md" can be specified as parameter.
For user's applications, it is freely specified.

(2) Button for Search File

For gem and user's applications, the file name can be specified as parameters.
This button shows the open file dialog to assist to specify the file name.

(3) Buttons

• OK button : The text string in the combobox will be used as parameter.
• Cancel button : Cancel the menu of tools.
• Help button : Run Time Parameter Form help will be shown.

The Software, CHD, does not need any parameters except for "/md" as MALT Direct. When the MALT direct is not specified by "/m", one option can be selected to start with the previously saved file.
