SortedOutput

Sorted Output

	View > Sorted Output
	None

The Sorted Output menu shows new Sortform which sorts the result of specified Case in the order of phase and result mole of each compound (downwards). You can create any number of Sortforms by this menu. The Sortform is lost entirely when it is closed.

* Note: You should use this menu after execute Run 1 Case for specified Case. Otherwise, you will see the sorted output of the latest calculation regardless of what Case is highlighted in Main Sheets.

You can edit text area in the top of Sortform, and Save/Load the contents of the text and grid in usual way as *.srt file. Also, the contents can be printed to a printer.

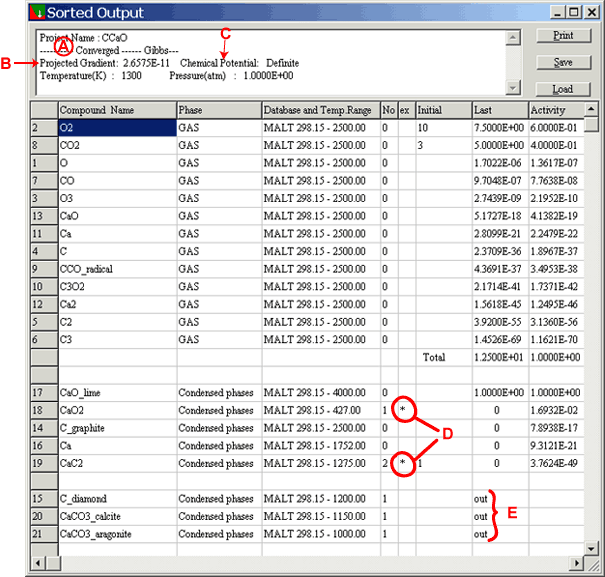

Fig.31 : Sortform Enlargement

Explanation of the Sortform

A Status of convergence

B Projected G

C Potential

D This asterisk means that the compounds are taken into calculation even if the temperature is beyond the available temperature range for the data of the compounds.

E These compounds are out of consideration because the temperature is beyond the available temperature range for the data of the compounds, and extrapolation settings are off.

A	Status of convergence
B	Projected G
C	Potential
D	This asterisk means that the compounds are taken into calculation even if the temperature is beyond the available temperature range for the data of the compounds.
E	These compounds are out of consideration because the temperature is beyond the available temperature range for the data of the compounds, and extrapolation settings are off.
