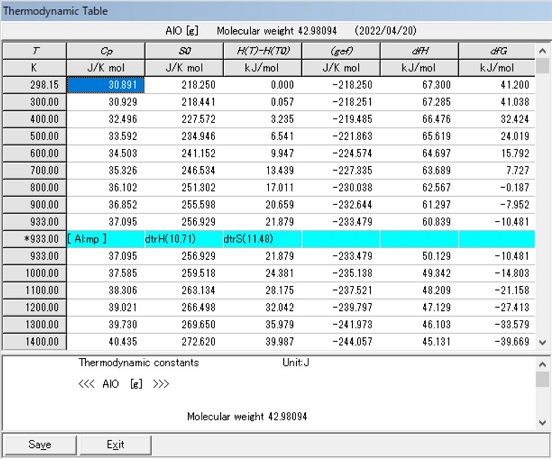

Thermodynamic Table Form
Thermodynamic Table Form
The Columns of the table can be selected in the "Tabulation" page in the MALT Options Form. This page can be shown in the menu of "Calculate / Janaf Type Table / Define Calc Condition" or "Calculate / Equilibrium Constants /Define Calc. Condition."
Temperature range and other features of the table can be selected in the Computation page in the MALT Options Form.
(1) Header
The compound name, molecular weight and the created date will be given for the Janaf thermochemicla table.
The target chemical reaction is written down here for the equilibrium constants.
(2) Table
This grid provides the results of computations.
This will be copied to Clipboard.
Copy Selected Area
The area to be copied is defined by the currently focused rows and columns.
The focus of row and column can be changed by using
tab key and arrow keys
or mouse.
Copy Current Row
The area to be copied is defined by the currently focused rows.
The focus of row and column can be changed by using
tab key and arrow keys
or mouse.
By selecting this option, the focused area will be changed to those belonging to the current rows.
Copy Current Column
The area to be copied is defined by the currently focused columns.
The focus of row and column can be changed by using
tab key and arrow keys
or mouse.
By selecting this option, the focused area will be changed to those belonging to the current columns.
Copy All the Table
The whole area will be copied regardless by the currently focused rows and columns.
By selecting this option, the focused area will be changed as the whole area..
(3) Memo
This memo provides the text information for the compounds involved.
When the option for "Show Thermodynamic Param" is not checked, this memo will not contain the information on thermodynamic parameters.
(4) Buttons
This form is equipped with buttons for Save and Exit.
