Compound Table Form

Compound Table Form provides a list of name of retreived compounds and will be used in the following different modes: this mode name is given in the title line of the Form.

1. Show compounds
2. Delete compounds
3. Select Compound for Janaf thermochemical Table
4. Select Reactants and Products for calculating Equilibrium constants

This Form consists of

• (1) Compound table grid (2) Label (3) Buttons

(1) Compound table grid

• This Compound Grid shows the selected compounds as green line and the currently focused compound as dark blue line.
• The currently focused selected compound is shown as light blue line.
• Selection and change in selection can be made by using tab key and buttons or by double clicking on the target compound.

(2) Label

• In the normal mode, this label is not shown.
• For the Equilibrium constants mode, selected compounds are listed in this label.

(3) Buttons

• Normal : no buttons will be shown.

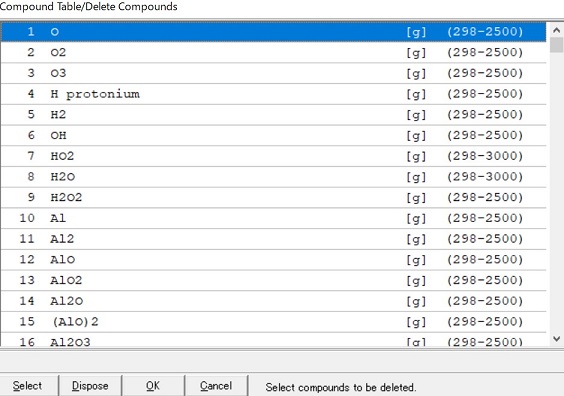

• Delete Compounds:
• Select : the currently focused compound will be selected.
• Dispose : the currently selected compound will be disposed.
• Cancel : the currently determined set of compounds will be cancelled and return without deleting any compound.
• OK : the currently determined set will be valid and those compounds will be deleted from the compound table.
• Janaf type table
• Select : the currently focused compound will be selected. Since only one compound should be selected, the previously selected compound will be cancelled.
• Cancel : without specifying any compound, return to the normal mode.
• OK : the selected compound will be calculated in the next procedure.
• Equilibrium constants
• Select : the currently focused compound will be selected.
• Dispose : the currently selected compound will be disposed.
• Cancel : the currently determined set of compounds will be cancelled and return without doing anything.
• OK : the currently determined set will be valid and the next procedure will be made.
