Diagram Example : 3D Chemical Potential Diagram 4a

Diagram examples   CHD Menus   CHD Dialogs   Commands in CHD

  to Description   to Details

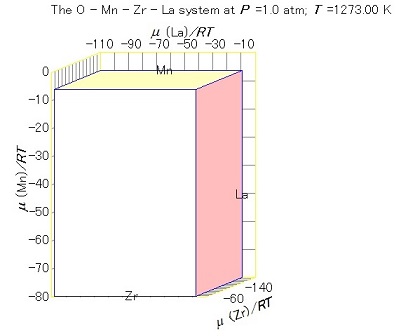

The chemical potential diagram for the La-Mn-Zr-O system at 1273 K.

1. Diagram : The three dimensional diagram in the μ(La)-μ(Mn)-μ(Zr) plot.






2. Description
     to Top   to Details

   • This is a three dimensional diagram for the four component La-Zr-Mn-O system at a constant temperature. Only three out of four components can be selected as diagram axes; here, μ(La)/RT, μ(Mn)/RT, and μ(Zr)/RT are used.

   • Stable phases are represented by polyhedrons in the three dimensional diagram. A whole diagram consists of those polyhedrons. In the diagram, polygons of respective polyhedrons are painted so that we cannot see inside the polyhedrons either under the polyhedrons.

   • By rotating the diagram, other polyhedrons can be seen.

   • To see the polyhedron below the visible polyhedrons, the option for changing the transparency of respective polyhedrons can be selected.

     See Example 4(b);


3. Details
     to Top   to Description


   1. [System] MALT

      Search Compounds

   Selection of <La,Mn,Zr,O> system


   2. Project > Chemical System

      <Chemical System> Dialog

      {Selection of Compounds} Page

      Selection by Default

      x Condensed phases
      o Respective Gaseous Species
      o Gaseous mixture



   3. Project > Specify Diagram

      <Diagram Specification> Dialog

      {Dimension Selection} Page

      Temperature

      x Fixed at 1273 K
      o Not Fixed

      Pressure

      x Fixed at 1 atm
      o Not Fixed

      {Diagram Selection}

      3D Chemical Potential Diagram
      Coordinates

      (La)
      (Mn)
      (Zr)

   4. Run > Calc

   5. Diagram > Color Details

   6. <Diagram Action Form> Dialog

      {Polygon Color} Page

      (1)Tricolors based on the Space Dimensions

      (LA) red
      (Mn) yellow
      (O) Blue

      ! No specification is made on (Zr) so that Zr phase will appear as white.
