Making (La, Mn, Zr, ZrO₂) Transparent

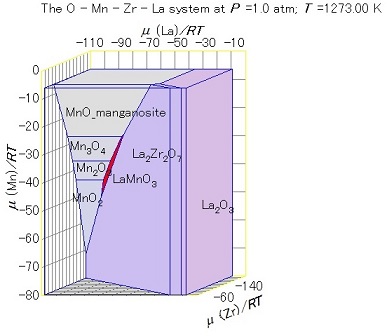

The chemical potential diagram for the La-Mn-Zr-O system at 1273 K.

1. Diagram : The three dimensional diagram in the μ(La)-μ(Mn)-μ(Zr) plot.




   Description of Diagram Example : 3 D Chemical Potential Diagram (4b)
   Making (La, Mn, Zr, ZrO₂) Transparent
   to Top to Description to Detailed


   • This diagram should be compared with Example 4a which shows the diagram in the same system but without any making transparent.

   • This should be also compared with Example 3b which shows the diagram in the same system under the condition of a (ZrO₂) = 1.0.

   • Since the ZrO₂ phase is made transparent, the appearing phases, MnO, Mn₃O₄, Mn₂O₃, MnO₂, LaMnO₃, La₂Zr₂O₇, are in equilibrium with ZrO₂. In this sense, the phase arrangement is similar to those in Example 3b.



2. Detailed procedure for reproducing Diagram Example 3D Chemical Potential Diagram (4b)
   Making (La, Mn, Zr, ZrO₂) Transparent
   to Top to Description to Detailed


   1. [System] MALT

      Search Compounds

   Selection of <La,Mn,Zr,O> system

   2. Project > Chemical System

   3. [Chemical System] dialog

      • [Select Compound] page

        Selection by Default

        x Condensed phases
        o Respective Gaseous Species
        o Gaseous mixture


   4. Project > Specify Diagram

   5. [Diagram Specification]Dialog Main part

      • (1) Dimension SelectionPage

        Temperature

        x Fixed at 1273 K
        o Not Fixed

        Pressure

        x Fixed at 1 atm
        o Not Fixed

      • (3) Diagram Selection page

        {Diagram Selection}

        3D Chemical Potential Diagram
        Coordinates

        (La)
        (Mn)
        (Zr)


   6. Run > Calculation

   7. Diagram > Color Details

   8. [Diagram Action Form]

      (3) Polygon Color

      (1)Tricolors based on the Space Dimensions

      (LA) red
      (Mn) yellow
      (O) Blue

      ! NO specification is made on (Zr) so thatn Zr phase will appear as white.
      (3){Colors based on Given Colors} Page

      1) Select first "Current TriColor" button

      29 Then, Select "LaMnO3" phase and
      Change Color to red


   9. View > Graph Inspector

   10. [Graph Inspector]

       {Compounds} Page

       Click "La", "Mn", "Zr" and "ZrO₂"
