Fixation of Oxygen Potential :The chemical potential diagram for the La - Mn - Zr - O system at 1273 K.

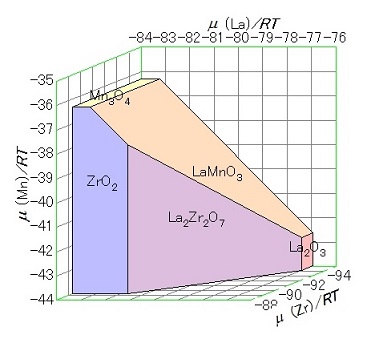

1. Diagram : The three dimensional diagram in the μ(La)-μ(Mn)-μ(Zr) plot.




2. Description of Diagram Example : Fixation of Chemical Potential (3a)
     To Top   to Details

   • This is the La-Mn-O-Zr quaternary system at a constant temperature.

   • By fixing the oxygen partial pressure at 1 atm, the diagram is constructed as a normal three dimensional diagram. Since the oxygen potential is fixed, three chemical potentials μ(La)/RT, μ(Mn)/RT, μ(Zr)/RT, are selected as diagram axes.

   • In a ZrO₂ plane, the thermodynamic activity of ZrO₂ is equal to unity; that is, the chemical potential is constant. Since the oxygen potential is fixed, the chemical potential of Zr, μ(Zr)/RT, becomes constant. Thus, the plane of ZrO₂ is perpendicular to the axis of μ(Zr)/RT. Similarly, the slope of respective planes is determined the stoichiometry of other elements than oxygen.

   • Double oxides, La₂Zr₂O₇ and LaMnO₃, appear between the respective constituent oxides.

   • A reaction between ZrO₂ and LaMnO₃ can be checked as follows;

   • This reaction can be written as

     ZrO₂ + LaMnO₃ = 0.5 La₂Zr₂O₇ + 1/3 Mn₃O₄ + 1/12 O₂(g)

   • The stability region of ZrO₂ is contacted directly with that of LaMnO₃, whereas the stability regions of products, La₂Zr₂O₇ and Mn₃O₄ are separated from each other. This means that the Gibbs energy change for the above reaction is positive.


3. Detailed procedure for reproducing Diagram Example Fixation of Chemical Potential (3a)
     To Top   to Description


   1. [System] MALT

      Search Compounds

   Selection of <La,Mn,Zr,O> system

   2. Project > Chemical System

   3. [Chemical System] dialog

      • [Select Compound] page

        Selection by Default

        x Condensed phases
        o Respective Gaseous Species
        o Gaseous mixture


   4. Project > Specify Diagram

   5. [Diagram Specification]Dialog Main part

      • (1) Dimension SelectionPage

        Temperature

        x Fixed at 1273 K
        o Not Fixed

        Pressure

        x Fixed at 1 atm
        o Not Fixed

      • (2) Fixation page

        Add

        [Select Fixation] dialog

        Select "O2(g)" Species

        [Coefficient] dialog

        Select ReEnter 1.0

      • (3) Diagram Selection page

        {Diagram Selection}

        3D surface

        Coordinates

        (La)
        (Mn)
        (Zr)


   6. Run > Calculation

   7. Diagram > Color Details

   8. [Diagram Action Form]

      (3) Polygon Color

      (1)Tricolors based on the Coordinates

      X-Axis red
      Y-Axis yellow
      Z-axis Blue
